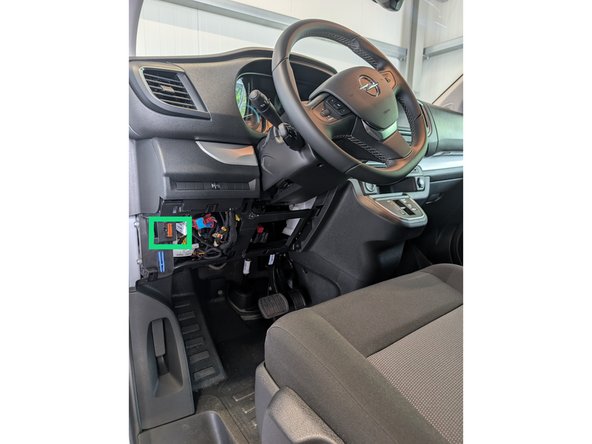

Locate & remove the OEM OBDII connector from its OEM location.
-

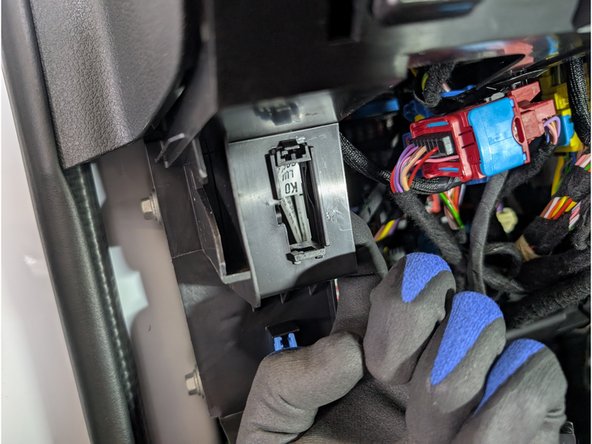

The OBDII connector can be released by pushing in it's clips on either side.
-
The connector retaining clips can be released using a small flat pry tool or pick tool from the front or back.
-
-
-
Use the adaptors 7 and 7.2 to mount our T harness appropriately at the origin of the OBD port.
-
There is an example of how to lock adapter 7.2 into adapter 7.
-
Insert the adapter number 7 into the OBD bracket. Push the harness with the molex connector end through the front of the Adapter, until it locks. Install the adapter 7.2 into the adapter 7 to lock it.
-
-
-
Plug the female connector from the T-harness into the OEM OBDII connector.
-
Secure connection with a cable tie.
-
Trim excess cable tie flush!
-
-
-
Plug the GO device into remaining end of the harness.
-
Secure the device to the harness with included cable tie.
-
Trim excess cable tie flush.
-
Every device has a black serialized cable tie included & should be used in this step.
-
-
-
Route device and harness to mounting location as needed.
-
Ensure cable does not interfere with any moving parts & secure harness as needed with cable ties.
-
Secure device using 2 cable ties.
-
This bracket is an acceptable location to secure the device.
-
To ensure reporting quality the device must be secured with no free movement!
-
Device must not be secured with bottom side facing in direct contact of metal!
-
In this example the bottom of the device (blue side of the GO device label) faces the center of the vehicle when secured to this bracket.
-
