GAH / LAE AH1-5B14L-AG

Written By: Alkesh Dhak
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

Recommended Tools & Consumables

No Recommended Tools & Consumables specified.

Hardware & Accessories

  1. The GAH / LAE AH1-5B14L-AG controller model requires the HRN-CCLAAHA harness.

    • The GAH / LAE AH1-5B14L-AG controller model requires the HRN-CCLAAHA harness.

  2. Locate the refrigeration unit controller inside the cab of the vehicle. Unmount the controller to gain access to the back. Some plates may have more screws than others.

    • Locate the refrigeration unit controller inside the cab of the vehicle.

    • Unmount the controller to gain access to the back.

    • Some plates may have more screws than others.

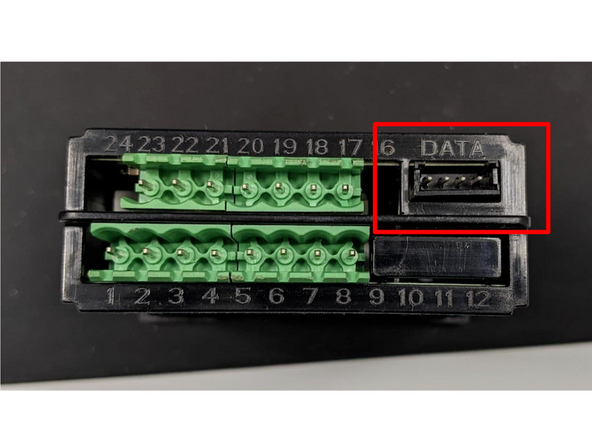

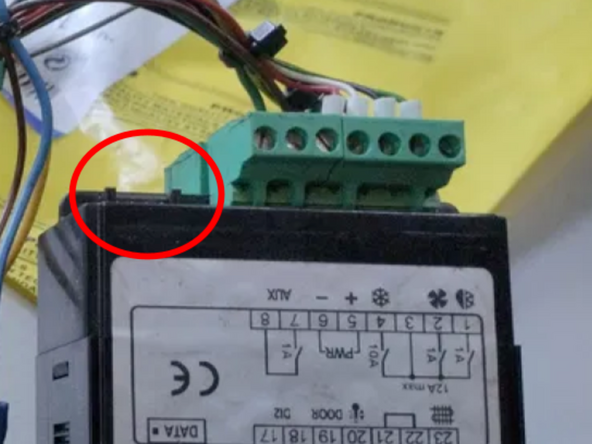

  3. Connect the female 4-pin connector from the HRN-CCLAAHA harness to the data port located on the back of the controller. Ensure the connection is secure and locked into place. Ensure the connection is secure and locked into place.

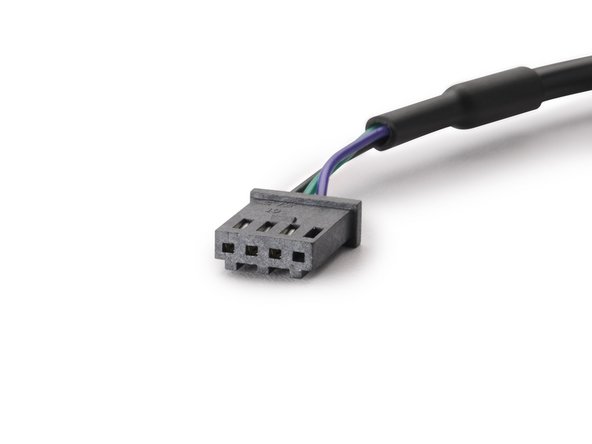

    • Connect the female 4-pin connector from the HRN-CCLAAHA harness to the data port located on the back of the controller.

    • Ensure the connection is secure and locked into place.

  4. The HRN-CCTKTSR contains loose wires which allow connecting the IOX-COLD to additional sensors such as 1-Wire temperature sensors or door sensors.

    • The HRN-CCTKTSR contains loose wires which allow connecting the IOX-COLD to additional sensors such as 1-Wire temperature sensors or door sensors.

    • Refer to the Accessories category for installation instructions.
