Introduction

AssetTrac™ is a 4G LTE tracking solution designed for the toughest conditions.

  • Complete visibility and simple geofencing
  • Customizable behavior
  • Flawless operation in the harshest temperatures (-22°F to 58° F)
  • Waterproof

LED Status

LED Status - External Power
When the Device has external power, LED behavior is as follows:
GREEN LEDBlinks once per second while acquiring a cellular connection.
LED is solid ON when a cellular connection is established.
LED is OFF when cellular modem is off.
RED LEDBlinks once per second while acquiring a GPS lock.
LED is solid ON when GPS is locked and tracking.
LED is OFF when GPS engine is off.
ORANGE LEDIndicates vibration. Blinks ~2x per second when sensing vibration.
Blinks once per second while in a vibration trip after vibration has stopped. This behavior persists until the configured debounce time.
LED is OFF when there is no vibration and device is not in a vibration trip.
LED Status - Stealth Mode
When the device is in Stealth mode, LED behavior is as follows:
GREEN LEDLED is OFF.
RED LEDBlinks once every 30 seconds, after the device wakes up to send a report.
Blinks every 30 seconds while the Motherboard on the device is powered.
LED is OFF when the device returns to stealth mode.
ORANGE LEDLED is OFF.

Recommended Tools & Consumables

Hardware & Accessories

  1. The ABS controller is typically located between the tandem axles on a trailer.

    • The ABS controller is typically located between the tandem axles on a trailer.

  2. Locate the ABS controller on the trailer and follow the harness until you locate the connection point. Disconnect the 5-way ABS connectors from each other.

    • Locate the ABS controller on the trailer and follow the harness until you locate the connection point.

    • Disconnect the 5-way ABS connectors from each other.

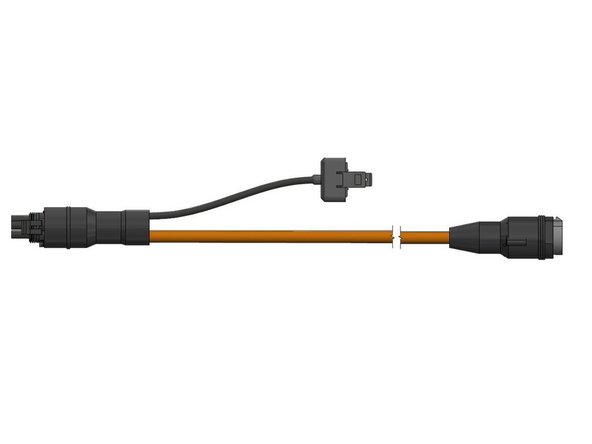

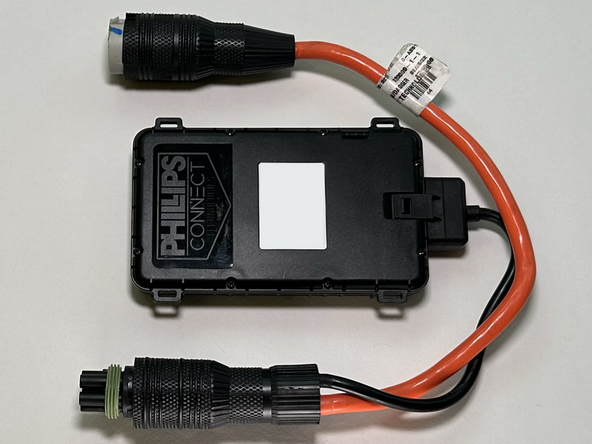

  3. The 5-way ABS harness is used for this installation. The 5-way ABS harness is used for this installation.

    • The 5-way ABS harness is used for this installation.

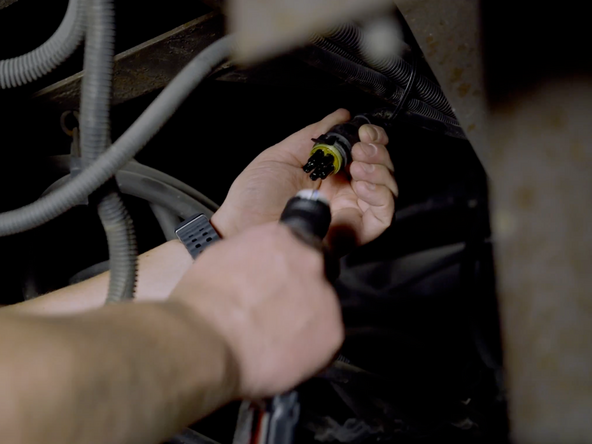

  4. Connect the female connector from the AssetTrac harness to the male connector on the trailer's 5-way ABS harness. Ensure the locking tab is engaged and that the connection is secure.

    • Connect the female connector from the AssetTrac harness to the male connector on the trailer's 5-way ABS harness.

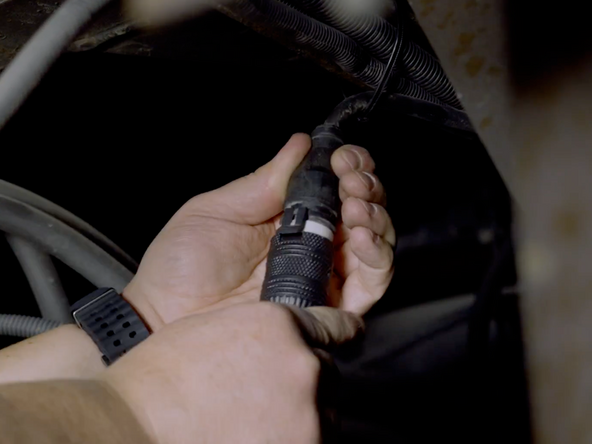

    • Ensure the locking tab is engaged and that the connection is secure.

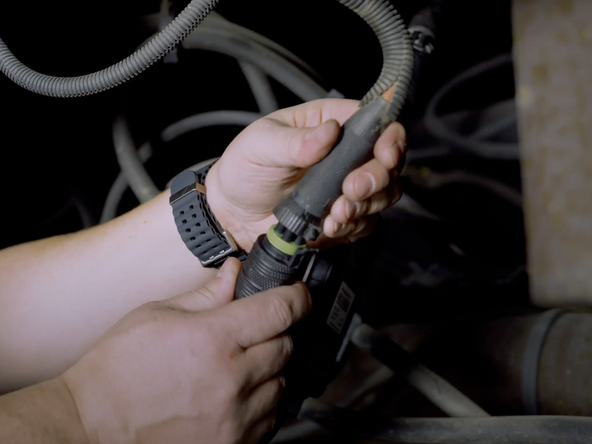

  5. Connect the male connector from the AssetTrac harness to the female connector on the trailers' 5-way ABS harness. Ensure the locking tab is engaged and that the connection is secure.

    • Connect the male connector from the AssetTrac harness to the female connector on the trailers' 5-way ABS harness.

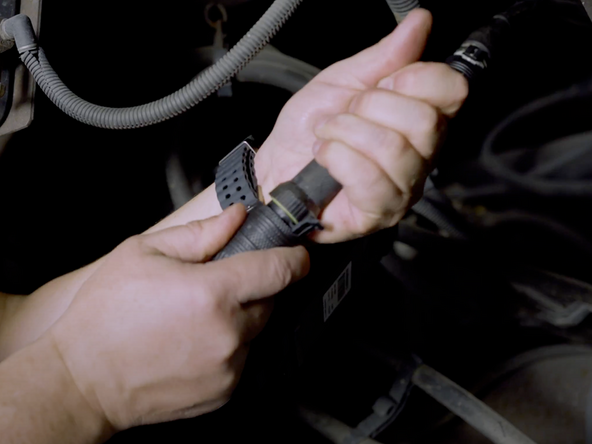

    • Ensure the locking tab is engaged and that the connection is secure.

    • Dielectric grease should be used on all connections to prevent corrosion.

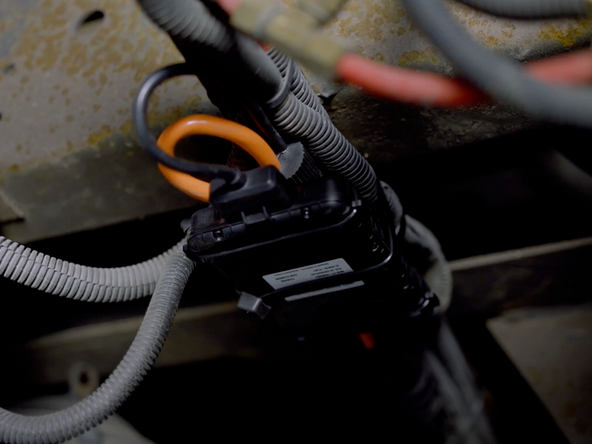

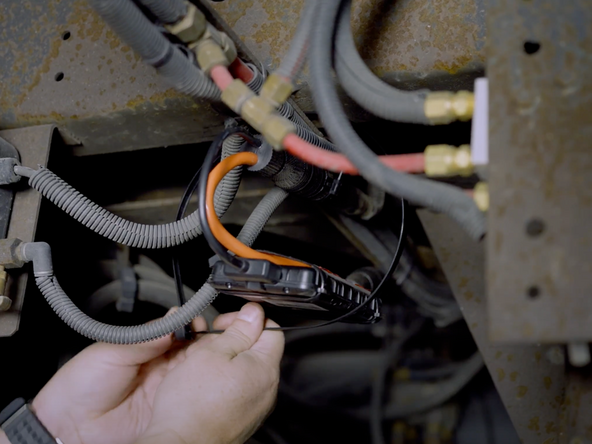

  7. Find a suitable mounting location for the AssetTrac device. Use the provided cable ties to secure the device. Trim any excess cable tie.

    • Find a suitable mounting location for the AssetTrac device.

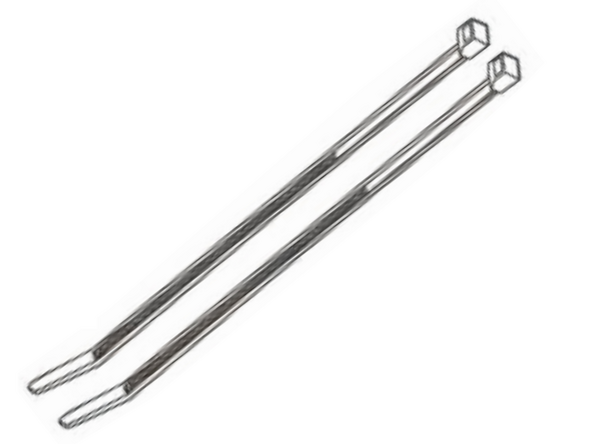

    • Use the provided cable ties to secure the device.

    • Trim any excess cable tie.

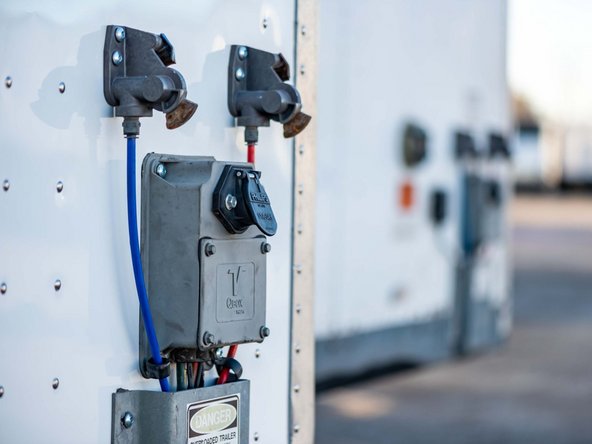

  8. Power up the AssetTrac device by connecting it to the J560 socket on the trailer with a tractor. Ensure Pin 7 - Auxiliary Power (blue) is receiving power from the tractor's J560 connection.

    • Power up the AssetTrac device by connecting it to the J560 socket on the trailer with a tractor.

    • Ensure Pin 7 - Auxiliary Power (blue) is receiving power from the tractor's J560 connection.

    • If power is not present on Pin 7 - Auxiliary Power (blue) on the J560 connection, check the fuse on the tractor to ensure it is not blown.

    • Refer to the vehicle owner's manual and/or fuse diagram for fuse location.

    • Refer to the LED Status - External Power chart and ensure the GREEN and RED LEDs are solid ON before starting the verification process.

    • All in-vehicle devices and related cabling must be securely fastened and kept clear of all vehicle controls, airbags, and gas, brake and clutch pedals.

    • This requires the use of a cable tie when securing the device or any extension harness to the OBD connector, securing both sides of the harness. If you do not use a cable tie, vibration in the vehicle can lead to a loose connection which could cause the vehicle’s engine computer to fail, causing potential loss of vehicle control and serious injury.

    • Inspect devices and cabling regularly to ensure all devices and cabling continue to be securely attached.

    • If at any point after an in-vehicle device is installed a warning light illuminates on the vehicle dash or the vehicle stalls or has a marked drop in performance, shut off the engine, remove the device, and contact your reseller. Continuing to operate a vehicle with these symptoms can cause loss of vehicle control, and serious injury.

  12. Enter the installer information.

    • Enter the installer information.

  13. Two options are available to enter the device serial number: Scan the device serial number (QR or barcode) using your mobile device. Press Enter serial number manually, enter the serial number, and then press Submit.

    • Two options are available to enter the device serial number:

    • Scan the device serial number (QR or barcode) using your mobile device.

    • Press Enter serial number manually, enter the serial number, and then press Submit.

    • If you are also removing an old device, press Did you remove an old device? and then enter the removed device serial number.

    • MyInstall takes a moment to check the device status.

  14. Installed device Pass – The device has successfully communicated with the network in the last 24 hours.

    • Installed device

    • Pass – The device has successfully communicated with the network in the last 24 hours.

    • Fail – The device has not communicated with the network in the last 24 hours.

    • If the device status shows as FAILED, verify the LED status and turn the ignition / engine off and on again.

    • Press Refresh to check the status again.

    • Refer to the MyInstall User Guide for detailed instructions.

  15. Under Input asset information, select the relevant Asset type from the dropdown.

    • Under Input asset information, select the relevant Asset type from the dropdown.

    • Fields displayed may vary based on the asset and device type.

    • Enter information about the vehicle or asset where the telematics device was installed.

  16. Asset name — Enter the vehicle or asset name. This field is mandatory.

    • Asset name — Enter the vehicle or asset name. This field is mandatory.

    • VIN — Scan or enter the vehicle identification number (VIN). For scanning, select the scan icon [O] beside the field. This field is mandatory.

    • Make, Model, and Year — This information will be auto populated when you scan or enter a valid VIN. If it is not autopopulated, enter the information manually. NOTE: For some vehicle makes and models, the autopopulate option might not be possible.

    • License plate — Enter the vehicle license plate.

    • Odometer (GO device only) — Enter the vehicle odometer, and select the measurement unit (km or miles).

    • Engine hours (GO device only) — Enter the vehicle engine hours.

    • Camera ID (GO device only) — Scan or enter the installed camera identification (ID) number. NOTE: Depending on the camera type, the camera ID number can also be the camera’s International Mobile Equipment Identity (IMEI), or serial number. Select the information icon ⓘ to learn more about your camera’s ID number.

    • Work order reference — If applicable, enter a work reference number that is associated with the installation.

  17. Review details by clicking or tapping on any section. If needed, update or refresh any captured information. When you are ready to submit, select Continue.

    • Review details by clicking or tapping on any section. If needed, update or refresh any captured information.

    • When you are ready to submit, select Continue.

    • For the latest version of the Limitations of Use, please visit: http://goo.gl/k6Fp0w

    • Your in-vehicle devices must be kept clear of debris, water and other environmental contaminants. Failure to do so may result in units malfunctioning or short-circuiting, which can lead to a fire hazard and cause loss or serious injury.

    • This product does not contain any user-serviceable parts. Configuration, servicing, and repairs must only be made by an authorized reseller or installer. Unauthorized servicing of these products will void your product warranty.

    • The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows:

    • Hereby, Geotab (Address: 2440 Winston Park Drive, Oakville, Ontario L6H 7V2, Canada, Phone number: 1 (877) 436-8221) declares that the radio equipment type ‘telematics device’ is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available here.

    • WARNING: Cancer and Reproductive Harm
