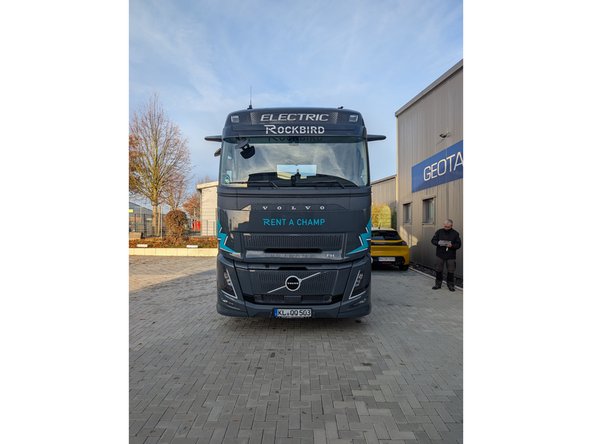

Volvo Truck FH/FHE FMS

Written By: Matthew Reilly
  • Comments: 0
  • Favorites: 0

Difficulty

Easy

Sections

1

  1. The FMS Port is situated on the driver's right footwell. To gain access to the port, two screws (T20 Torx) must be removed as indicated on the right. A plastic trim tool is recommended for this step.

    • The FMS Port is situated on the driver's right footwell.

    • To gain access to the port, two screws (T20 Torx) must be removed as indicated on the right.

    • A plastic trim tool is recommended for this step.

    • Remove the two remaining screws securing the panel. Then, use a panel removal tool to detach the panel.

  2. The green FMS connector is clearly visible. Connect the HRN-ES12S1 harness . Clip the GO9B into the bracket of the SPR-INSTALLBAG. Clip the GO9B into the bracket of the SPR-INSTALLBAG.

    • The green FMS connector is clearly visible. Connect the HRN-ES12S1 harness .

    • Clip the GO9B into the bracket of the SPR-INSTALLBAG.

  3. Clip the molex connectors of the T-Harness together and disconnect Pin 3 & 11 as marked in blue. Use our Install bag and attach the Go device to it.

    • Clip the molex connectors of the T-Harness together and disconnect Pin 3 & 11 as marked in blue.

    • Use our Install bag and attach the Go device to it.

  4. Apply the double sided tape included with the SPR-INSTALLBAG onto the mounting bracket and GO device. Firmly mount it to a suitable flat surface

    • Apply the double sided tape included with the SPR-INSTALLBAG onto the mounting bracket and GO device.

    • Firmly mount it to a suitable flat surface

    • Finally, reinstall the panels in the reverse order of removal.
