Rexroth CS520

Written By: Jason Fox (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

Video Overview

  1. The Rexroth RS232 DB9 is a non-standard port with +5V power on pin 1. To avoid potential damage to the IOX-WRKS or Rexroth control board you must us the HRN-FAI cable between the primary port and the Rexroth cable. Rexroth Cable R987448072 connects the CS 520 serial port to the IOX-WRKS primary port through the HRN-FAI cable.

    • The Rexroth RS232 DB9 is a non-standard port with +5V power on pin 1. To avoid potential damage to the IOX-WRKS or Rexroth control board you must us the HRN-FAI cable between the primary port and the Rexroth cable.

    • Rexroth Cable R987448072 connects the CS 520 serial port to the IOX-WRKS primary port through the HRN-FAI cable.

    • If using AVL cables part number R987376776 or R987400008. The IOX-WRKS primary port connects to the TEMP PORT, and requires a DB9F-F null adapter.

  2. Use the Rexroth cable to connect to the CS520 Serial Port. Connect the other end to the HRN-FAI cable and then to the IOX-WRKS primary port. Connect the other end to the HRN-FAI cable and then to the IOX-WRKS primary port.

    • Use the Rexroth cable to connect to the CS520 Serial Port.

    • Connect the other end to the HRN-FAI cable and then to the IOX-WRKS primary port.

    • Ensure the IOX-WRKS has the correct controller configuration loaded before proceeding to verification / simulation mode.

  4. From the main screen press the down arrow to obtain SIMSP button. Press SIMSP Press the Up arrow to Increase and Down arrow to Decrease speed. Turn the Spinner and Conveyor dials to confirm Rates.

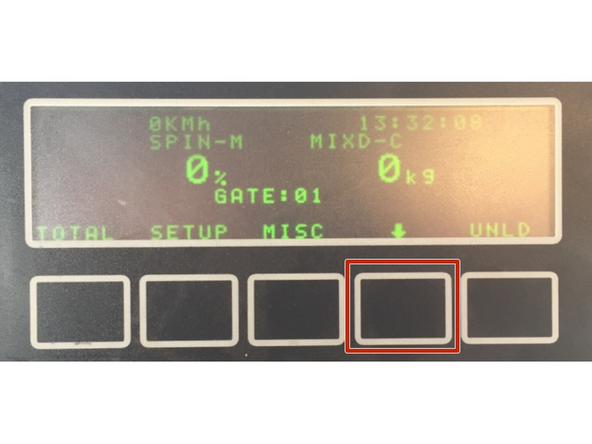

    • From the main screen press the down arrow to obtain SIMSP button.

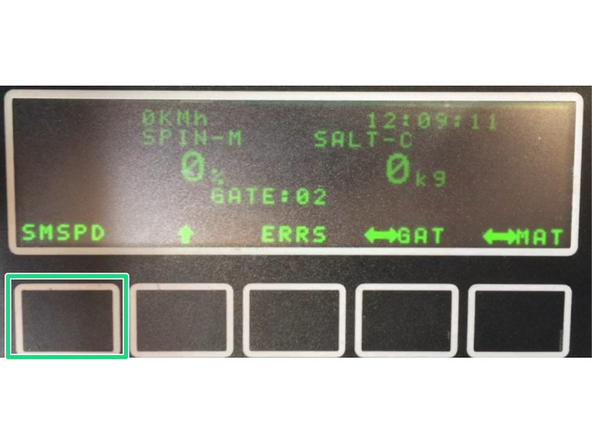

    • Press SIMSP

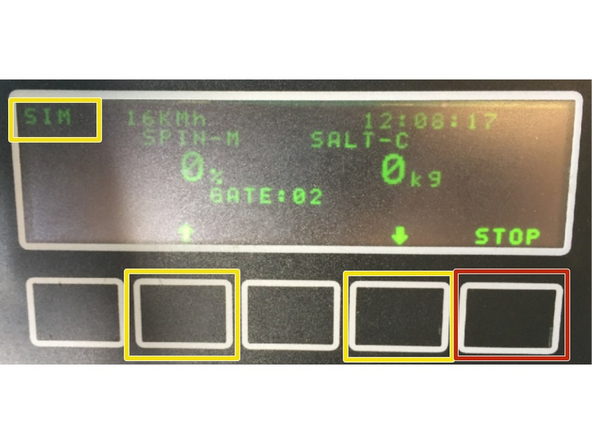

    • Press the Up arrow to Increase and Down arrow to Decrease speed. Turn the Spinner and Conveyor dials to confirm Rates.

    • Press Stop to exit SIMSP. Up arrow returns to main screen.

    • Never leave a controller in simulation mode!
