Before starting the installation, ensure the Geotab GO device is unplugged from the vehicle.
-

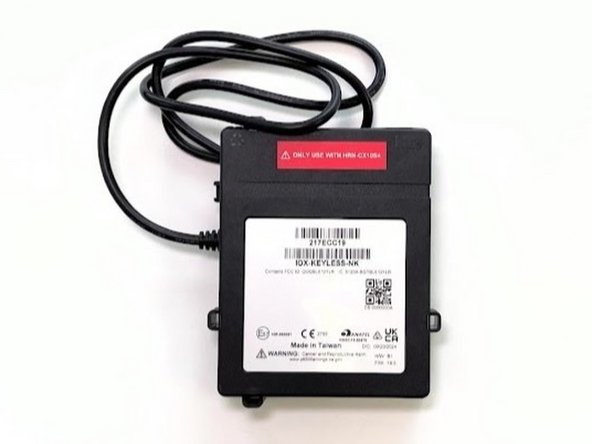

IOX-KEYLESS is used in conjunction with IOX-NFCREADERA and IOX-BT to control access to the vehicle.
-
-
-

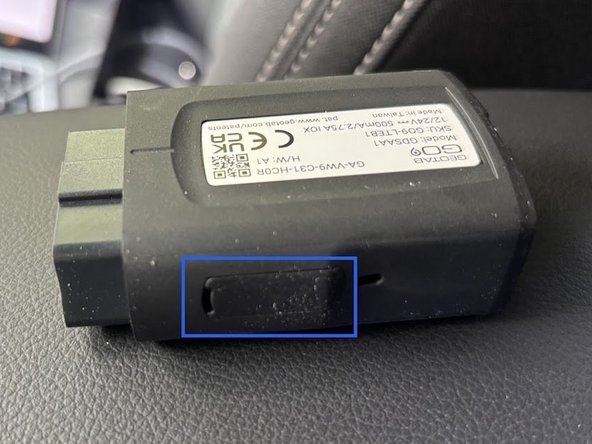

Remove the IOX expansion port cover on the GO device.
-

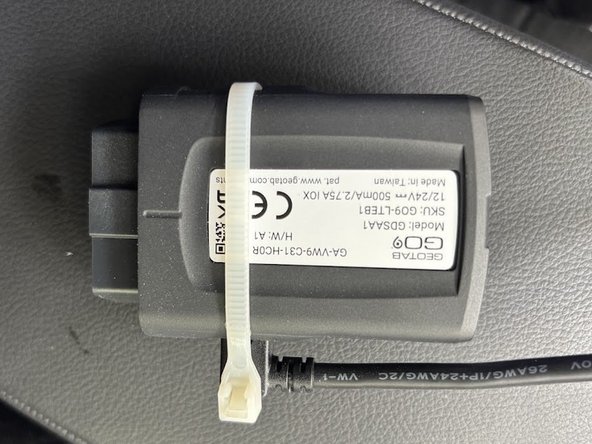

Plug the 90° IOX connector from the IOX-KEYLESS into the GO device. Secure the IOX connector using a cable tie. Please note that over tightening the cable tie may damage the IOX connector.
-
Insert the IOX connector in the orientation displayed in the image.
-
-
-
Remove the IOX termination shunt of the IOX-KEYLESS and connect the IOX-NFCREAD.
-
Secure the connection using cable ties.
-
Choose an appropriate location to mount and conceal the IOX-KEYLESS.Use the existing cable tie locations on the IOX-KEYLESS casing to attach the vehicle.
-
Choose an area where the IOX-KEYLESS does not interfere with the safe operation of the vehicle. Keep the routing of the IOX wire in mind when choosing a location for the IOX casing.
-
-
-
Route the IOX-NFCREAD harness through the A-pillar up to the dashboard.
-
Clean the windscreen with the provided wipes.
-
Install SPR-NFCBRKTV2ASY, by peeling the 3m double side tape and securing to the windscreen.
-
-
-
Removed the IOX termination shunt from the IOX-NFCREAD.
-
Connect the IOX-BT . Secure the IOX connector using a cable tie. Please note that over tightening the cable tie may damage the IOX connector.
-
Use a cable tie to secure the cable and then trim any excess cable tie.
-
