v1.3

Minor Versionm

by Jason Fox

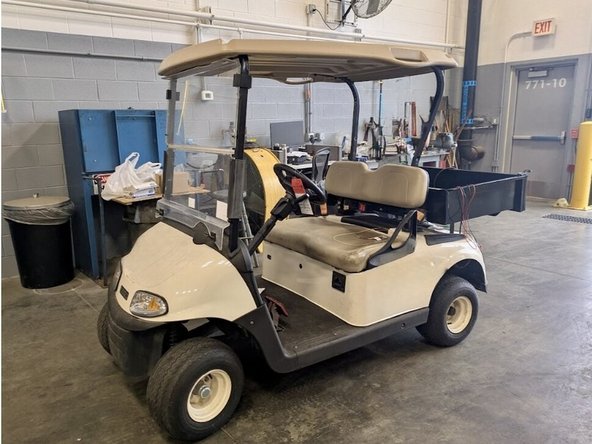

EZ GO Golf Cart

Written By: Jason Fox (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

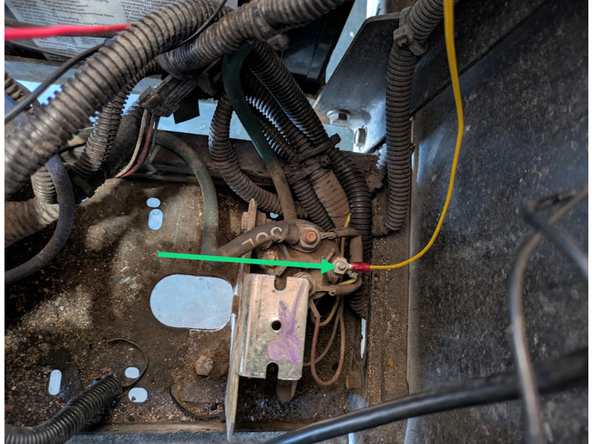

  1. access batteries by lifting seat cushion Locate true ignition source from the contactor and connect yellow wire from the HRN-RW03K4 harness. Connect the red wire from the HRN-RW03K4 harness to the battery POSITIVE.

    • access batteries by lifting seat cushion

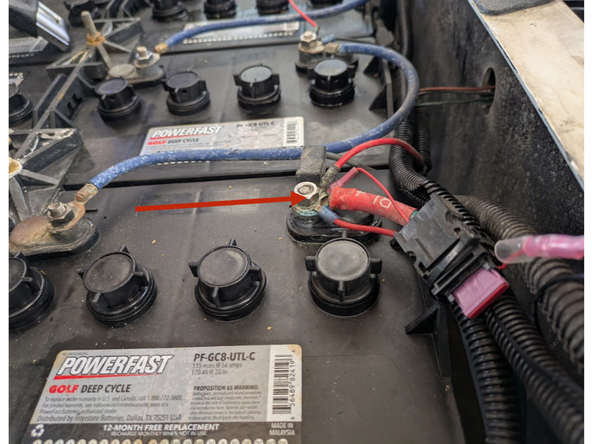

    • Locate true ignition source from the contactor and connect yellow wire from the HRN-RW03K4 harness.

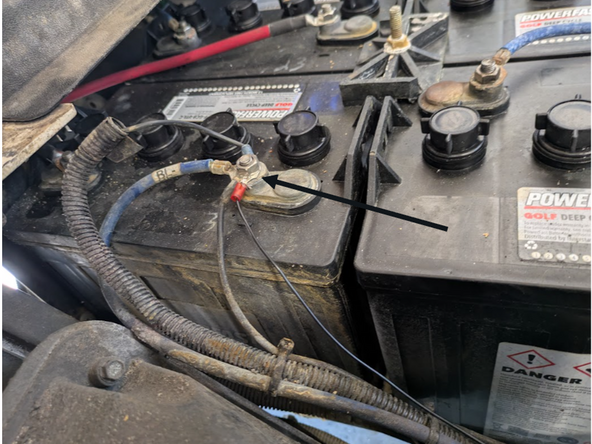

    • Connect the red wire from the HRN-RW03K4 harness to the battery POSITIVE.

    • Connect the black wire from the HRN-RW03K4 harness to the battery NEGATIVE.

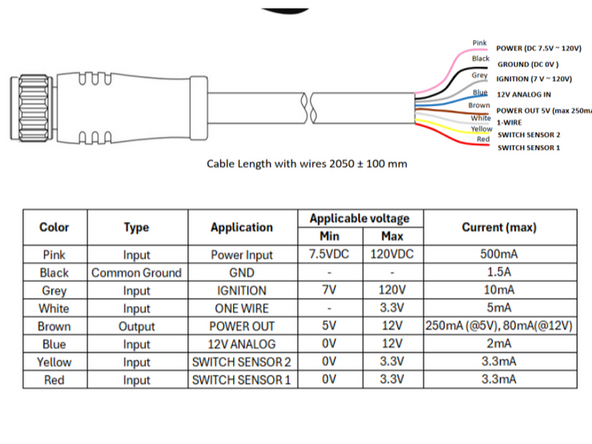

  2. Connect the BeWired+ device as follows: Grey Wire (Ignition) goes to the Yellow Wire of the HRN-RW03K4.

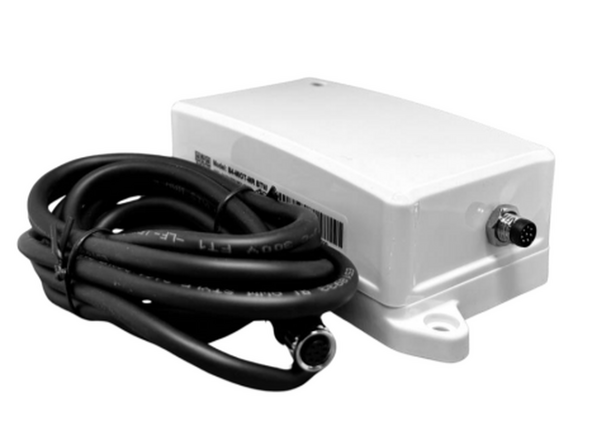

    • Connect the BeWired+ device as follows:

    • Grey Wire (Ignition) goes to the Yellow Wire of the HRN-RW03K4.

    • Pink Wire (Constant Power) goes to the Red Wire on the HRN-RW03K4.

    • Black Wire (Ground) goes to the Black Wire on the HRN-RW03K4.

  3. Attach magnetic feet to the Go Rugged Secure GO Rugged in the under seat compartment using magnetic feet. Plug HRN-RS12A1 into HRN-RW03K4 and into GO Rugged.

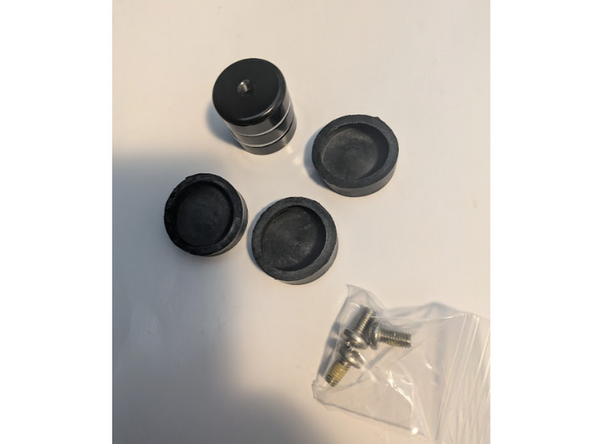

    • Attach magnetic feet to the Go Rugged

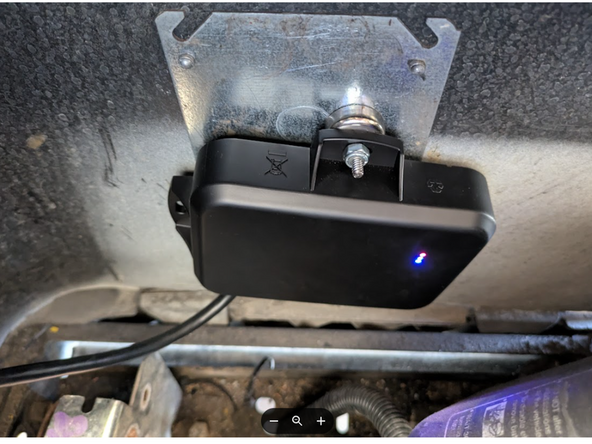

    • Secure GO Rugged in the under seat compartment using magnetic feet.

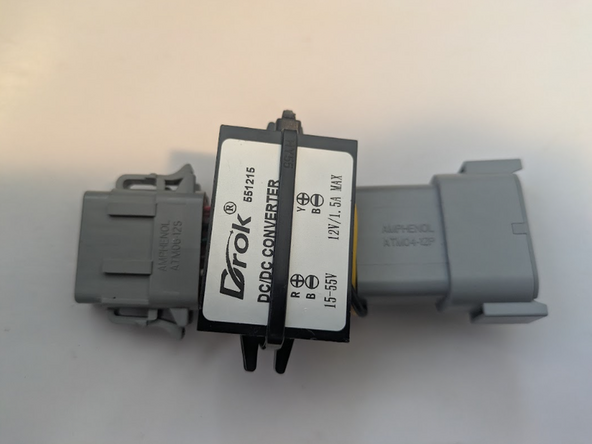

    • Plug HRN-RS12A1 into HRN-RW03K4 and into GO Rugged.
