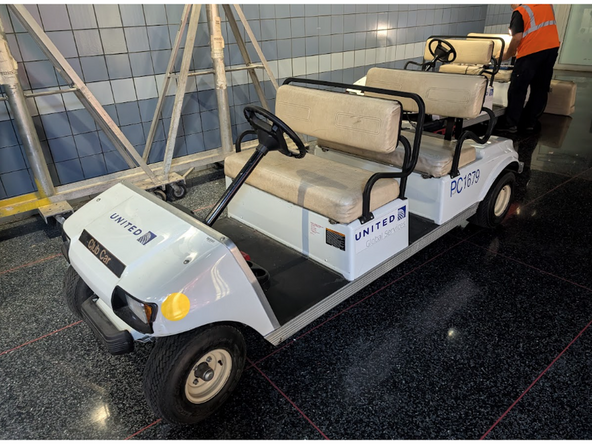

Club Car Passenger Golf Cart

Written By: Jason Fox (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

  1. Access batteries by lifting seat cushion. Locate true ignition source on the Green wire from the loomed harness that goes to the controller. Connect yellow wire from the HRN-RW03K4 harness to that Green wire using a heat shrink butt connector. Locate the constant power source Orange wire from the loomed that goes to the controller. Connect Red wire from the HRN-RW03K4 harness to that Orange wire using a heat shrink butt connector.

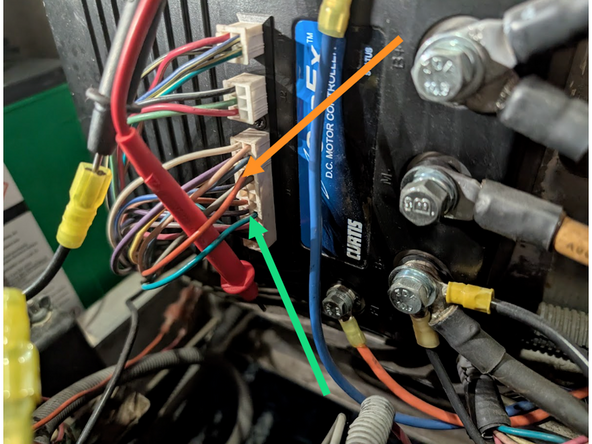

    • Access batteries by lifting seat cushion.

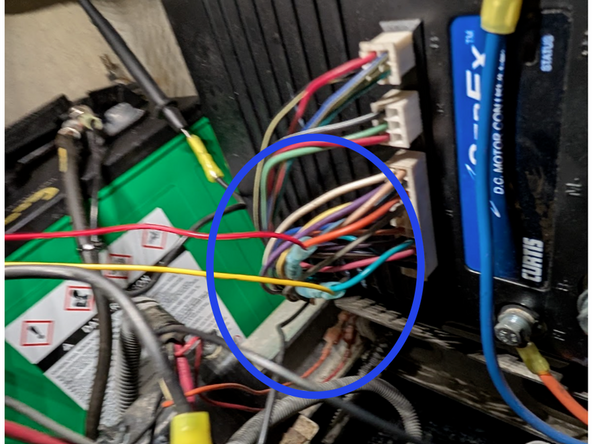

    • Locate true ignition source on the Green wire from the loomed harness that goes to the controller. Connect yellow wire from the HRN-RW03K4 harness to that Green wire using a heat shrink butt connector.

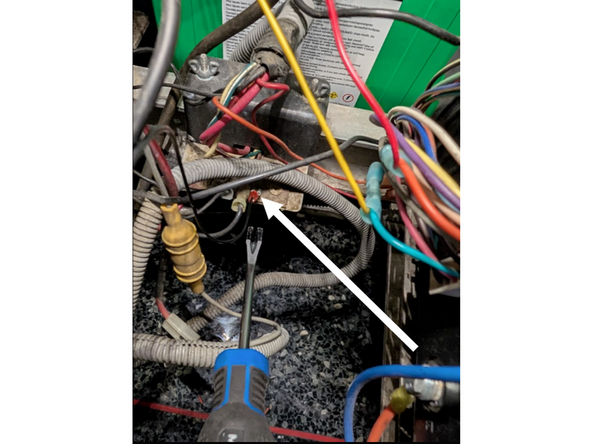

    • Locate the constant power source Orange wire from the loomed that goes to the controller. Connect Red wire from the HRN-RW03K4 harness to that Orange wire using a heat shrink butt connector.

    • Connect the black wire from the HRN-RW03K4 harness to the Chassis Ground.

  2. Mount the Go Rugged on the controller cover with the supplied self tappers and mount the HRN-RS12A1 on the metal bracket next to the mounted Go Rugged. Plug the step down HRN-RS12A1 into HRN-RW03K4 and the Go Rugged.

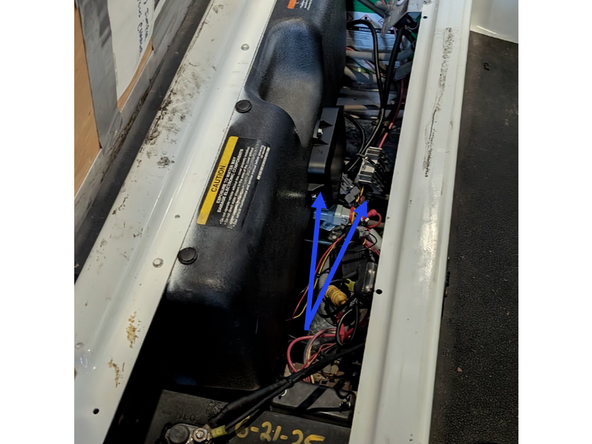

    • Mount the Go Rugged on the controller cover with the supplied self tappers and mount the HRN-RS12A1 on the metal bracket next to the mounted Go Rugged.

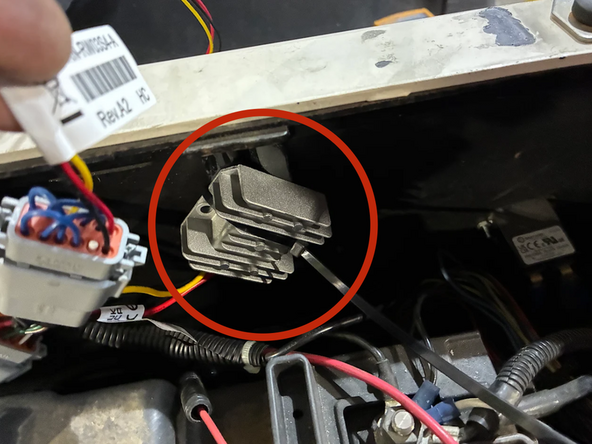

    • Plug the step down HRN-RS12A1 into HRN-RW03K4 and the Go Rugged.
