Carrier Supra

Written By: Brad Legge (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Sections

1

Recommended Tools & Consumables

No Recommended Tools & Consumables specified.

Hardware & Accessories

  1. The Carrier Supra controller model requires the HRN-CCCASTD harness.

    • The Carrier Supra controller model requires the HRN-CCCASTD harness.

  2. Connect the 3-Pin connector of the HRN-CCCASTD harness to the spare connection located below the control panel compartment. If the serial port is not free, contact the support team.

    • Connect the 3-Pin connector of the HRN-CCCASTD harness to the spare connection located below the control panel compartment.

    • If the serial port is not free, contact the support team.

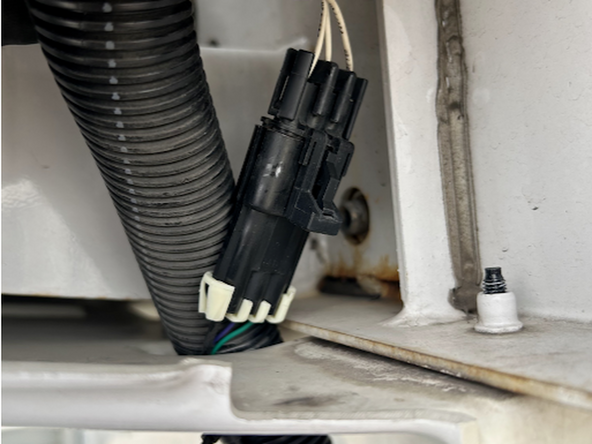

  3. Ensure the connection is secure and locked into place.

    • Ensure the connection is secure and locked into place.

    • Use dielectric grease whenever connections may be exposed to moisture.

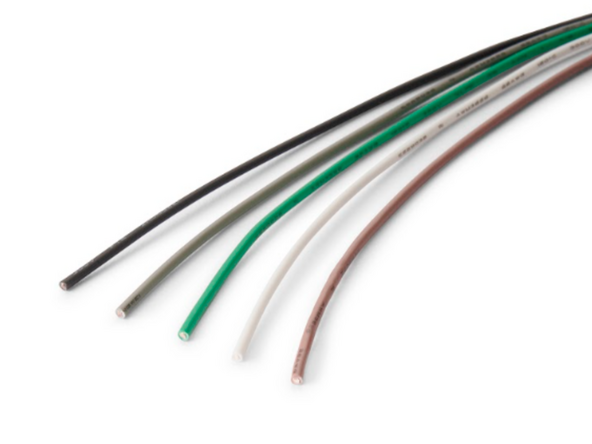

  4. The HRN-CCCASTD contains loose wires which allow connecting the IOX-COLD to additional sensors such as 1-Wire temperature sensors or door sensors.

    • The HRN-CCCASTD contains loose wires which allow connecting the IOX-COLD to additional sensors such as 1-Wire temperature sensors or door sensors.

    • Refer to the Accessories category for installation instructions.
